Temporary pedestrian bridge " Economy" with handrail

Temporary pedestrian bridge made from HDPE with removable steel handrails. A quick, safe and easy solution to provide access across ditches during groundworks.

Article number: 12-7000-001

Temporary pedestrian bridge "Economy" with steel handrail

Made from HDPE with red/white markings

  • Black UV resistant footplate
  • Removable handrails in galvanised steel and finished in RAL 1003 (yellow)
  • Stackable and easy to stock
  • Equipped with anti-slip profile
  • Light weight and easy to handle thanks to sturdy grips
  • Red and white markings at both sides of the footplate
  • Multiple footplates can be easily connected to form a wider bridge
  • The temporary pedestrian bridge can be anchored (anchors not included)
  • Load capacity 1000 kg

Our temporary pedestrian bridge "Economy"  is the ideal solution to minimise inconvenience to residents during ground or cable works. It ensures safe access to their property and ensures a professional and flexible lay-out of your work area.

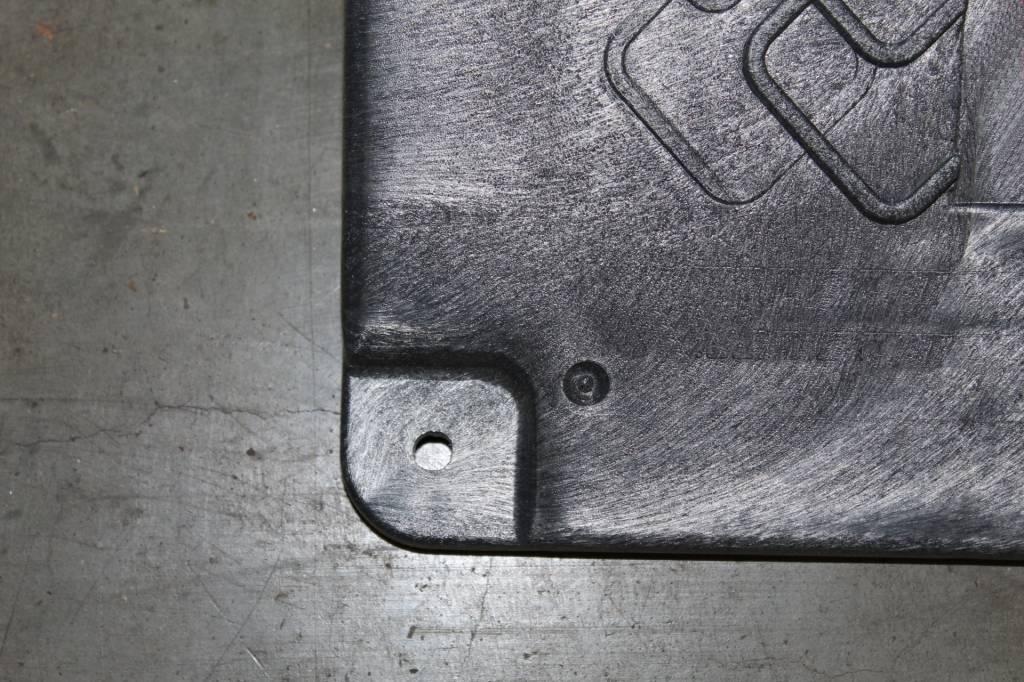

The temporary pedestrian bridge "Economy" has a pronounced anti-slip profile that reduces the risk of accidents in rain, snow or icy conditions. For added stability, the floorplate can be anchored in the corners with four steel rods.

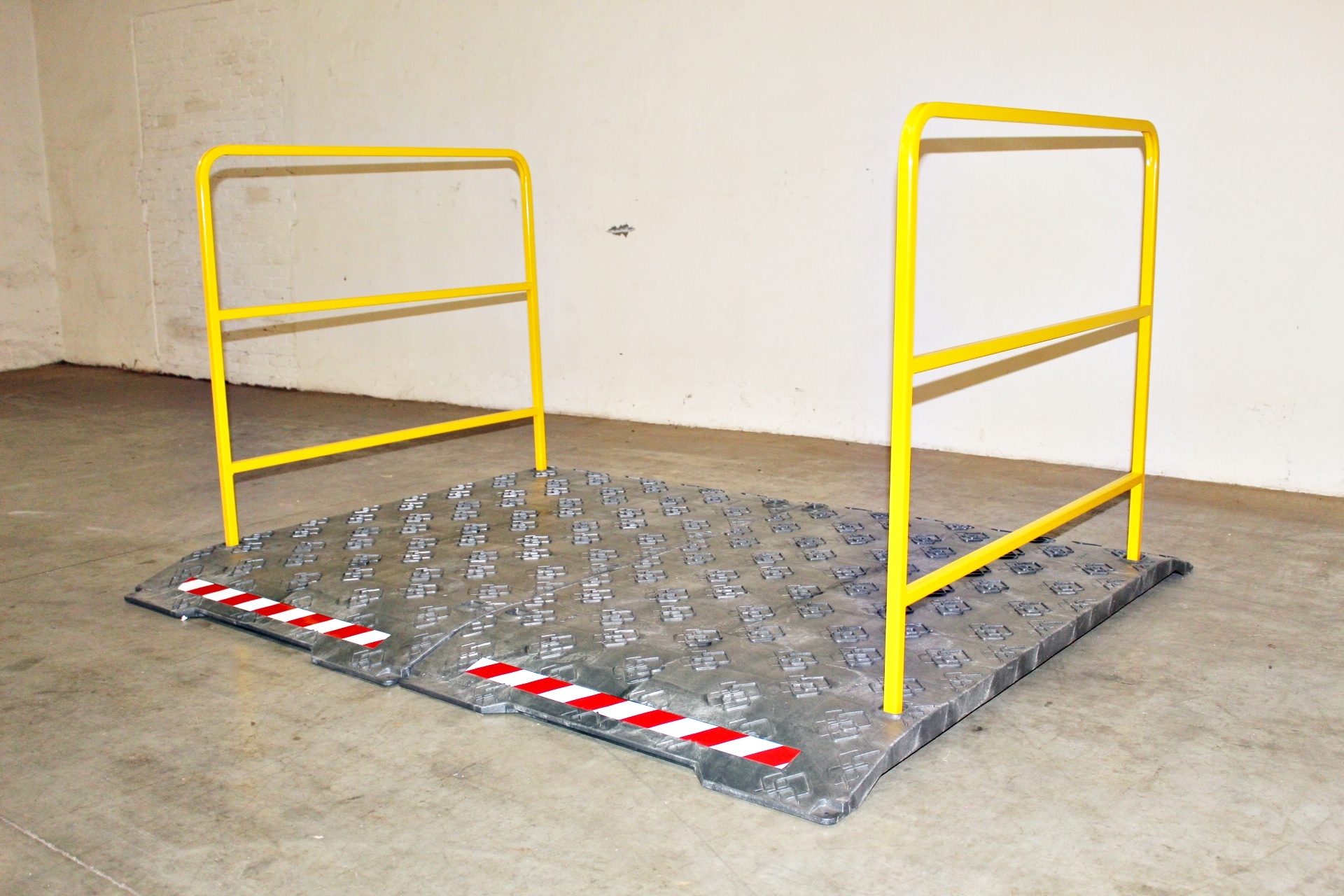

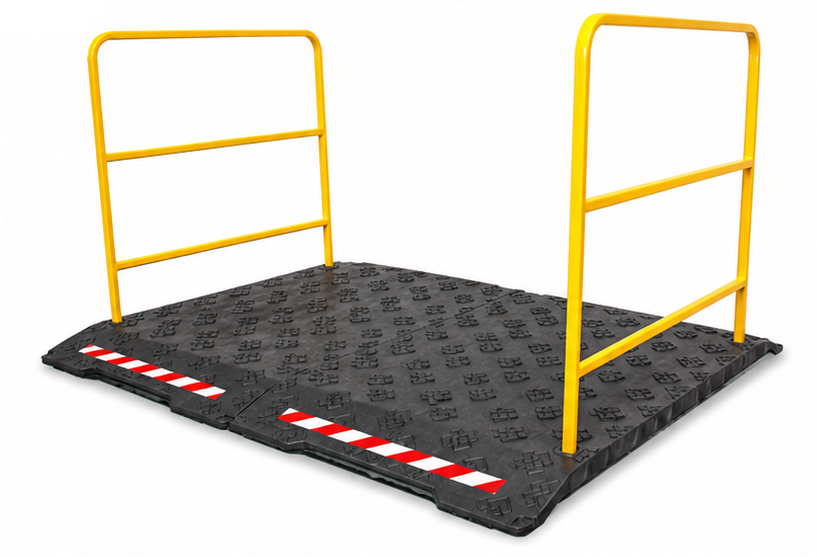

Thanks to its male / female connections multiple floorplates can be connected to form a wider passage. Attention: This temporary pedestrian bridge "Economy" may be used for light vehicles with caution. Make sure to never exceed the maximum load bearing capacity of the bridge (1000 kg) and that it does not have any damage that may weaken the structure.

For added visibility, the temporary bridge is equipped with red / white marking at either side of the footplate.

The correct placement of a temporary bridge is important to ensure stability and load bearing capacity. Markings are placed on the footplate (at the height of the recesses for the handrail) to indicate the maximum distance that the bridge can safely span. Simply put: the part of the footplate before the recess for the handrail must ALWAYS be fully supported on the ground.

Due to its light weight and sturdy grips, the temporary pedestrian bridge "Economy" can easily be handled by one person. The handrails are removable and are placed in the openings provided for this purpose. The handrails are also available separately.

We always have our temporary pedestrian bridge "Economy" in stock.
